Bolt | Freedom Series

OX

SEATED CALF RAISE

*** SHIPPING INCLUDED ***

Price
$1,475
Taxes and shipping calculated at checkout
Out of stock

Frequently Bought Together

OX

OX

Price
$1,475

The OX Seated Calf Raise from BOLT Fitness Supply is a heavy-duty lower-body strength machine designed to isolate the calf muscles through a controlled seated raising movement. Engineered with commercial-grade steel construction, ergonomic padding, and a strategically angled footplate, the OX delivers a focused training experience for athletes, bodybuilding enthusiasts, and fitness facilities looking to expand their lower-body equipment selection. Its compact footprint and substantial loading capacity also make it an excellent option for residential gyms seeking professional-level strength equipment.

Targeted Calf Training and Extended Range of Motion

The OX Seated Calf Raise is designed to emphasize the soleus muscle while also engaging the gastrocnemius during seated calf raise exercises. Its footplate is angled 20 degrees toward the seat, helping extend the athlete's range of motion and allowing for a deeper stretch and controlled contraction throughout each repetition.

The polyurethane-coated footplate provides additional traction to help prevent slipping during training. This design supports consistent foot positioning while users focus on controlled movement and progressive overload.

With a plate-loaded resistance system, the OX allows users to increase training intensity by adding Olympic weight plates. Its single 12.25-inch weight horn accommodates up to nine 45-pound plates, providing a stated loading capacity of 405 pounds. For advanced resistance training, compatible SAVAGE Chains can also be incorporated.

Adjustable Ergonomics and Integrated Safety

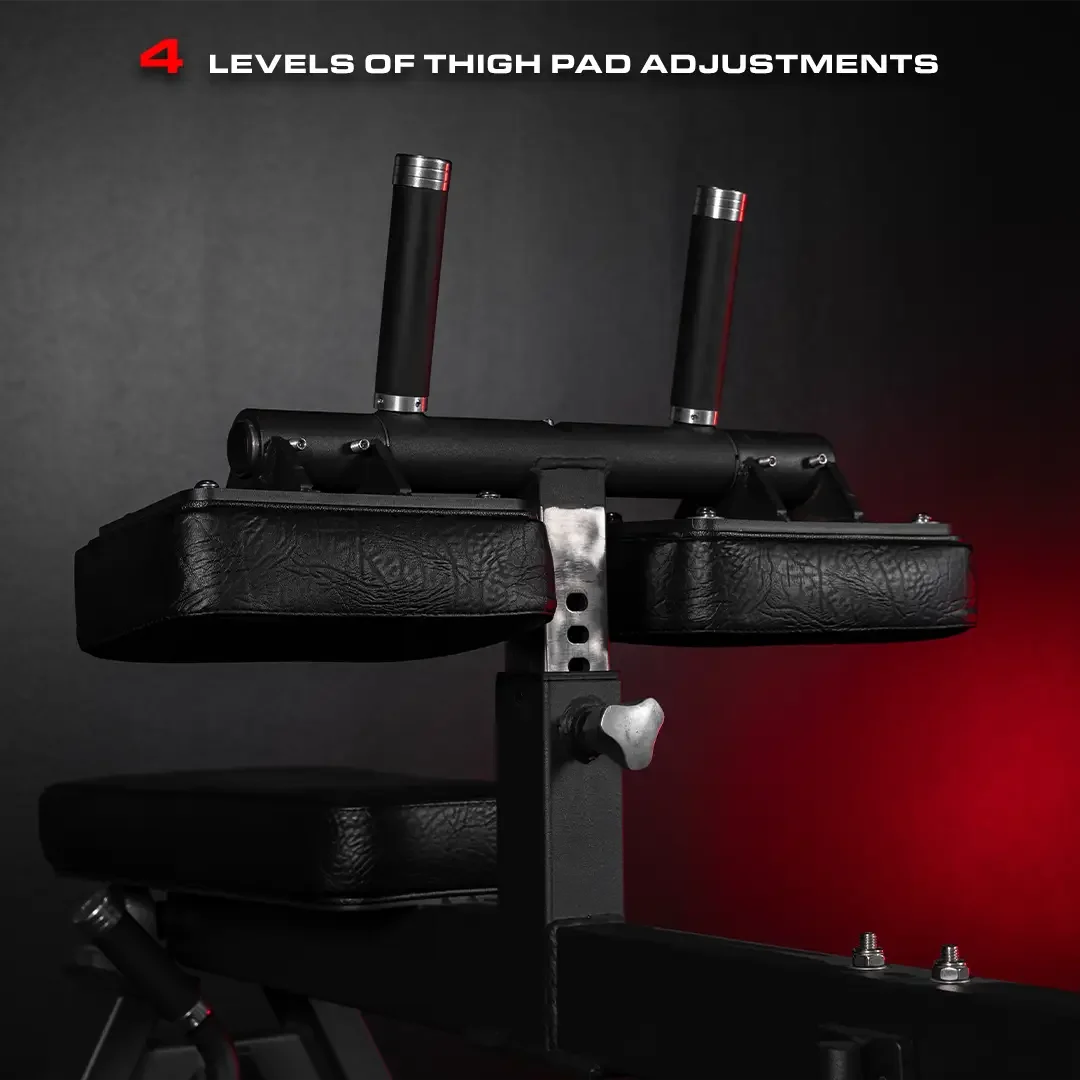

The OX features a vertically adjustable leg pad with 6 inches of adjustment, allowing users to customize positioning for a more comfortable fit. Both the leg pad and the 20-inch-long seat feature 2-inch-thick foam padding to provide support during demanding calf workouts.

An integrated safety catch is positioned to the right of the seat. It automatically tilts as the primary arm moves and can be easily locked back into position after completing a set, adding an important safety feature to the training experience.

Heavy-Duty Construction for Commercial and Residential Gyms

Constructed from 11- to 14-gauge steel, the OX is engineered to meet the demands of commercial fitness facilities while remaining accessible to residential gym owners. Its durable frame and compact dimensions make it a practical addition to dedicated lower-body training areas.

Explore BOLT's Lower Body Plate-Loaded Equipment collection for additional strength machines, or pair the OX with SAVAGE Chains to expand your resistance training options.

Specifications

  • Product name: OX Seated Calf Raise
  • Product type: Plate-loaded seated calf raise machine
  • Primary muscles: Soleus and gastrocnemius
  • Resistance system: Plate-loaded
  • Weight horn: 12.25 inches
  • Maximum stated loading capacity: 405 lb (nine 45 lb Olympic plates)
  • Footplate angle: 20 degrees toward the seat
  • Footplate surface: Polyurethane-coated for increased traction
  • Leg pad adjustment: 6 inches vertically
  • Leg pad padding: 2-inch-thick foam
  • Seat length: 20 inches
  • Seat padding: 2-inch-thick foam
  • Safety feature: Integrated automatic safety catch
  • Frame construction: 11- to 14-gauge steel
  • Dimensions: 61" L × 39" W × 48" H
  • Machine weight: 157 lb

Why Choose the OX Seated Calf Raise?

The OX combines an extended range of motion, adjustable leg support, integrated safety features, and a 405-pound loading capacity in a durable seated calf raise machine. Its commercial-grade construction makes it suitable for high-traffic fitness facilities, while its compact design and accessible configuration also work well in residential gyms. For gym owners and athletes investing in professional fitness equipment, the OX is a dedicated solution for developing stronger calves and building a more complete lower-body training program.

  • Product name: OX Seated Calf Raise
  • Product type: Plate-loaded seated calf raise machine
  • Primary muscles: Soleus and gastrocnemius
  • Resistance system: Plate-loaded
  • Weight horn: 12.25 inches
  • Maximum stated loading capacity: 405 lb (nine 45 lb Olympic plates)
  • Footplate angle: 20 degrees toward the seat
  • Footplate surface: Polyurethane-coated for increased traction
  • Leg pad adjustment: 6 inches vertically
  • Leg pad padding: 2-inch-thick foam
  • Seat length: 20 inches
  • Seat padding: 2-inch-thick foam
  • Safety feature: Integrated automatic safety catch
  • Frame construction: 11- to 14-gauge steel
  • Dimensions: 61" L × 39" W × 48" H
  • Machine weight: 157 lb
